Visit the website >> Wash-Down Pumps
Marine Cleaning Application
Wash-down pumps are ideal for both sea and shore cleaning & painting applications. These pumps provide the pressure and flow needed for consistent performance. Marine pumps for cleaning are typically made from corrosion-resistant materials and designed to withstand the harsh environment. They are easy to set up, use, and store, and can be adjusted or modified for multiple applications.
- ARO
- Fusion Fluid
- Grundfos
- MP
- Oberdorfer

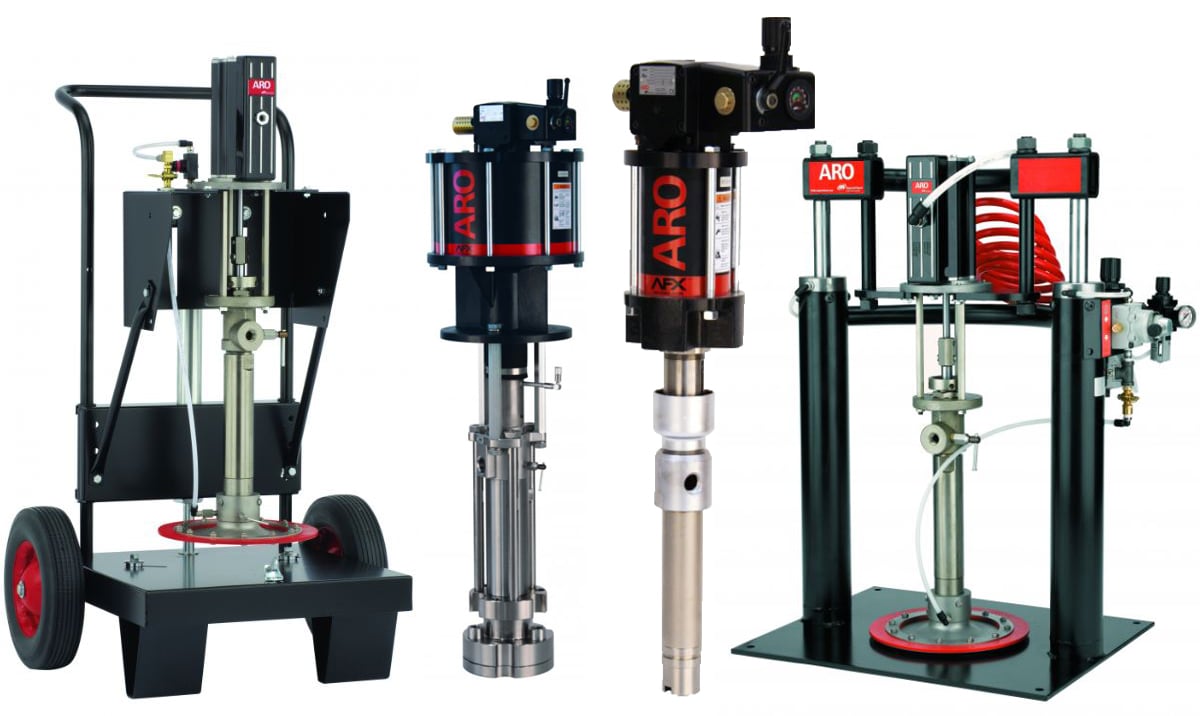

Piston Pumps and Packages
ARO AFX (ARO-Force) piston pumps are the perfect solution for marine cleaning and painting jobs. Superior air motors with only five moving parts offer versatility and easy maintenance.
High-pressure piston pumps work great for deck cleaning, hull prepping, and airless spray painting marine vessels. ARO piston pumps provide the pressure and flow needed for consistent performance, and the robust design ensures reliability and productivity under the most demanding conditions for the variety of applications:
- Cargo areas and holds
- Storage tanks
- Galleys
- Septic treatment spaces
- Refrigeration areas
- Pools and spas
- Paint and preparation rooms
- Decks
- Damage control rooms
- Hydraulic rooms
- Ship exterior
ARO 2-Ball Piston Pumps
The ARO 2-ball piston pumps are made for consistent, uniform fluid delivery. These pumps are highly versatile. They can handle low to medium-viscosity materials up to 100,000 cPs, with fluid delivery up to 18.1 GPM. The 2-ball pump design provides a constant flow rate and high pressure. The design minimizes friction points, preventing fluid shear and allowing for fluid consistency.
ARO 4-Ball Piston Pumps
ARO 4-ball piston pumps are designed for low and medium-viscosity fluids up to 12,500 cPs with fluid delivery up to 32.8 GPM. These 4-ball pumps can process higher fluid volumes, which minimizes the time spent filling and emptying containers. The double-acting pumps, drawing material on both the upstroke and downstroke, allow for a higher flow rate.
Features & Benefits
- Reduced failure risk due to fewer moving parts
- Designed and constructed for easy maintenance
- Progressive Exhaust enhances pump performance
- No springs to fail due to fatigue
- Requires no lubrication and no lubricator installation
- Groundable
- ATEX-compliant
- Lower pump end component options: SS, Carbon Steel, Chrome, Ceramic Ultra-Coating
- Higher ratio pumps produce high-pressure to move higher viscosity fluids or transfer fluids longer distances.
- ARO is a member of the International Marine Purchasing Association (IMPA).
Fusion Fluid Drum Mixers
Fusion Fluid drum mixers are designed for precise mixing of paints and cleaning solutions in drums, ideal for smaller-scale marine applications. They ensure even consistency and faster preparation, improving efficiency in tasks like hull cleaning and deck painting.
- Direct Drive: ½ - 3HP (1150-1750 RPM)
- Gear Drive: ½ - 3HP (230-350 RPM)
- Batch: 55 gallons (typical)
- Shaft Length: 30” FMB
Fusion Fluid Tote Mixers
Fusion Fluid tote mixers are designed for marine cleaning and painting applications. They efficiently mix paints and cleaning solutions in tote containers, ensuring consistency and improving efficiency while reducing waste in tasks like hull cleaning and deck painting.
- Direct Drive: ½ - 3HP (1150-1750 RPM)
- Gear Drive: ½ - 3HP (230-350 RPM)
- Batch: 275 to 575 gallons
- Shaft Length: 36” FMB
The Grundfos CRT series vertical multi-stage centrifugal pumps are designed for a variety of cleaning and washdown processes on ships, boats, and other marine vessels. Grundfos CRT series pumps provide the high-pressure water needed for effective deck cleaning, marine growth, and fouling from the hull.
- Max Flow: 115 US gpm
- Max Head: 821 ft
- Liquid Temperature: -4 .. 248° F
- p max: 363 psi
- Material: titanium
Fetures & Benefits
The CRT and CRTE pumps are non-self-priming, vertical multistage centrifugal pumps. Titanium has exceptional resistance to a wide range of acids, alkalis, seawater, and industrial chemicals.
- Available with Grundfos standard motors (CRT pumps) or frequency-controlled motors (CRTE pumps)
- CRT and CRTE pumps handle a variety of liquids from seawater to sodium hypochlorite.
- High corrosion resistance
- Space-saving
- In-line suction and discharge ports
- Maintenance-free mechanical shaft seal with dimensions to DIN 24960
- Totally enclosed, fan-cooled, 2-pole Grundfos standard motor with principal dimensions to EN standards
- Electrical tolerances according to EN 60034
- Variety of shaft seals and rubber materials

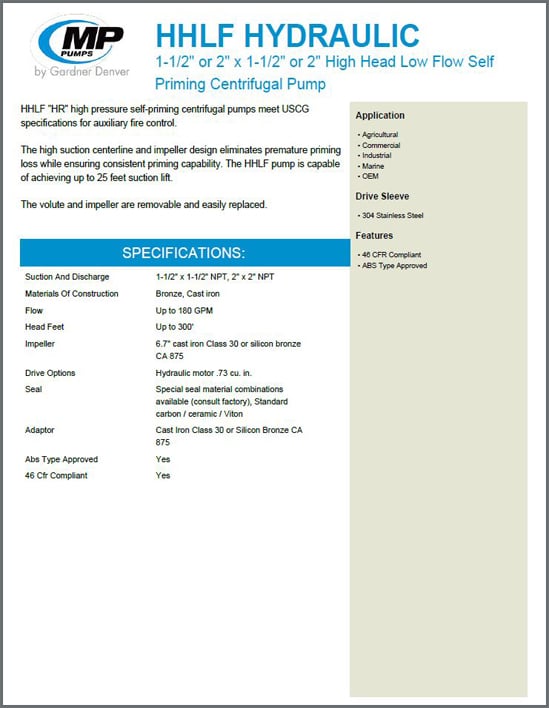

MP HHL Flomax high-pressure water pumps are engineered to transport water over long distances or to great heights, ranging all the way up to 300 head feet. Designed with a high suction centerline and impeller, this high-pressure water pump eliminates premature priming loss while ensuring consistent priming capability.
The HHLF series is available close coupled to NEMA “C” Face electric motors or as PumPAKs®. The engine drive models are capable of close coupling to both gasoline and diesel engines with 1″ keyed drive shafts. Pedestal-mounted pumps are also available.
The volute and impeller are removable and easily replaced.
Features and Benefits
- High Head-Low Flow Centrifugal Pump
- Size: 1.5", 2", or 2" High Output
- Self-Priming
- Flows to 180 gpm
- Heads to 300 ft
- Lifts to 25 ft
- Drive sleeve: 304 Stainless Steel
- Drive options: Close coupled 184TC, Engine mount 5.5 HP, Engine mount 7.5 HP, Hydraulic motor .73 cu. in., Pedestal, PumPAK® (without motor)
- Seal: Optional seals available, Standard carbon / Ceramic / Viton
- Available in Cast Iron/Bronze, All Bronze
- Volute material: Bronze
- Impeller: 6.7" cast iron Class 30 or silicon bronze CA 875
- Meets ABS Approval for Marine Service
Oberdorfer Centrifugal Wash-Down Pumps
- Standard:
- Flows to 100 GPM
- Heads to 200 ft
- Self-Priming:
- Flows to 90 GPM
- Heads to 82 ft and Suction Lift to 20 ft
- All Bronze Construction
- Multiple Seal & Motor Options
Oberdorfer Flexible Impeller Wash-Down Pumps
- Max. Flow: 59 gpm
- Max. Pressure: 56 psi
- Bronze Corrosion Resistance Materials
- High Chrome SST Shaft
- Impeller Material in Neoprene & Buna-N
- Suction lift of 15 feet when impeller fully primed

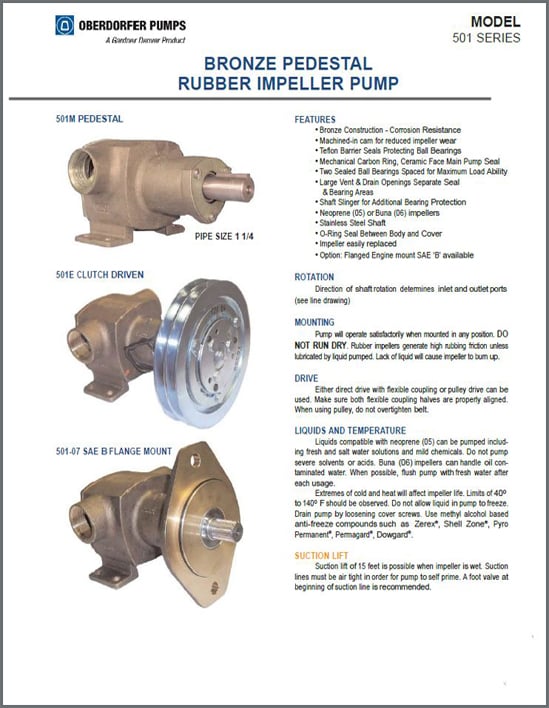

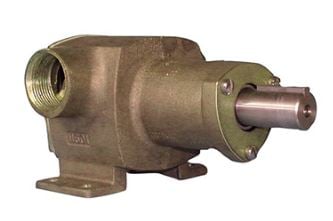

Flexible Rubber Impeller Pump - 501
- Polytetrafluoroethylene (PTFE) Barrier Seals Protecting Ball Bearings
- Neoprene (05) or Nitrile (06) Impellers
- Stainless Steel Shaft
Self-Priming Centrifugal Pumps - 750B
- Self-Priming to 20 Feet Suction Lift
- Seal Options Available for Solvents and Mild Chemicals
- Available with Nickel Alloy Shaft for Marine Applications

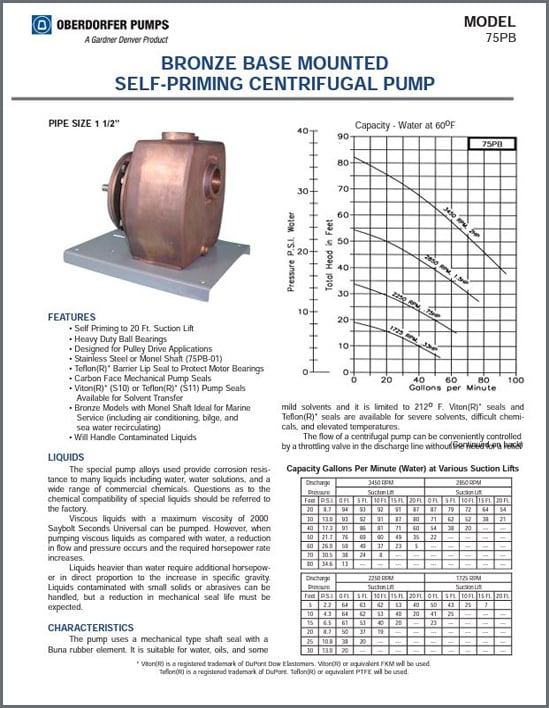

Self-Priming Centrifugal Pumps - 75PB
- Self Priming to 20 Feet Suction Lift
- Heavy Duty Ball Bearings
- Designed for Pulley Drive Applications

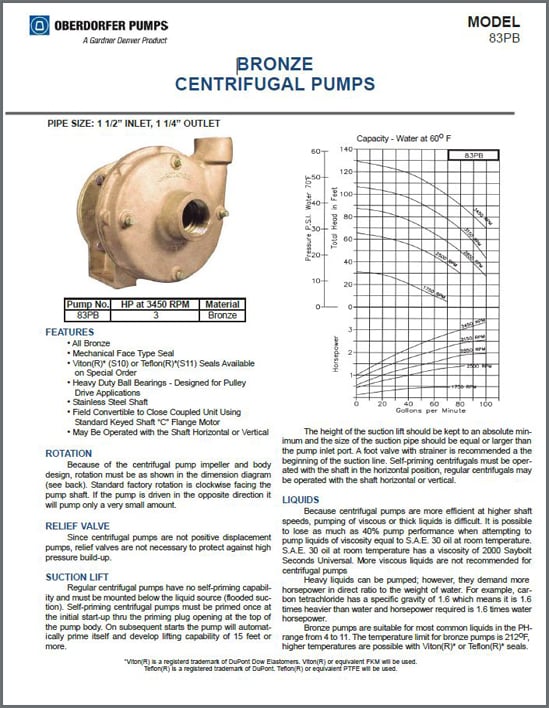

Centrifugal Pumps - 82PB, 83PB
- Mechanical Face Type Seal
- Fluoroelastomer (S10) or Polytetrafluoroethylene (PTFE) (S11) Pump Seals Available for Solvent Transfer
- Heavy Duty Ball Bearings - Designed for Pulley

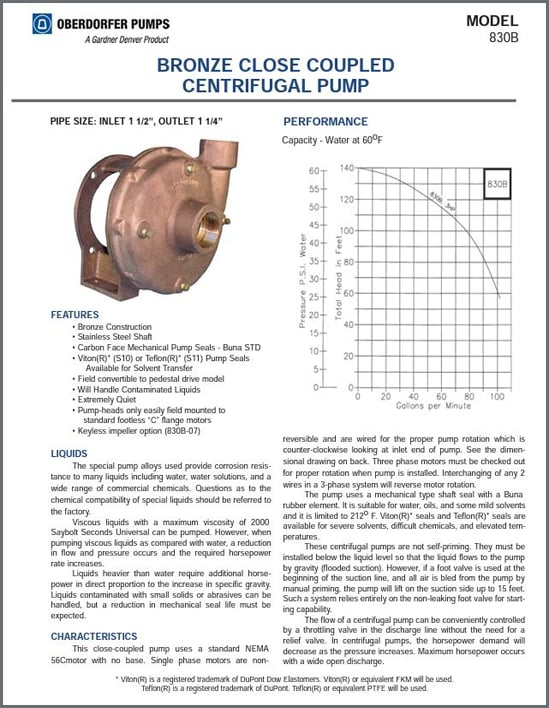

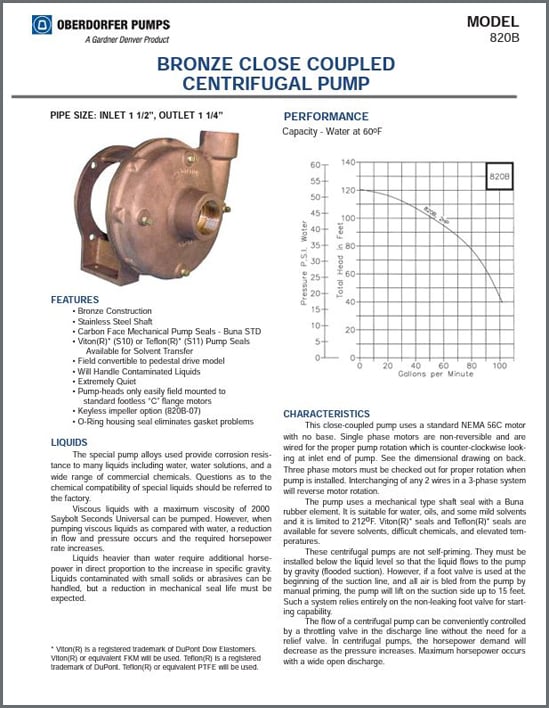

Centrifugal Pump - 820B, 830B
- Carbon Face Mechanical Pump Seals - Nitrile STD
- Fluoroelastomer (S10) or Polytetrafluoroethylene (PTFE) (S11) Pump Seals Available for Solvent Transfer
- Field convertible to pedestal drive model
- Standard:
