Ingersoll Rand Turbine Starters
Ingersoll Rand turbine air starters are built to endure the harshest environmental and working conditions. Unlike cantilever designs, Ingersoll Rand's fully supported, high-speed rotors reduce deflection and maintain concentric operation, significantly extending bearing life. The lightweight, lube-free, and easily field-serviceable motor design makes Ingersoll Rand turbine air starters an ideal choice for OEM engine manufacturers.

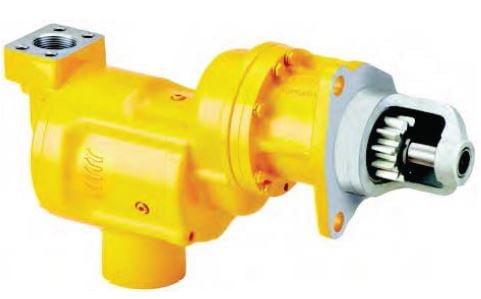

- ST 150 Series

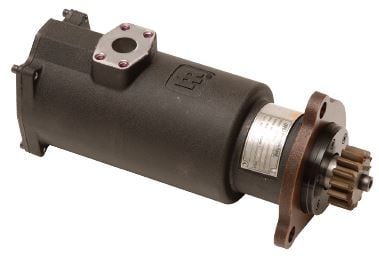

- ST 400 Series

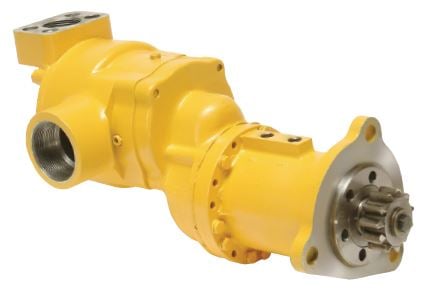

- ST 500 Series
- ST 600 Series

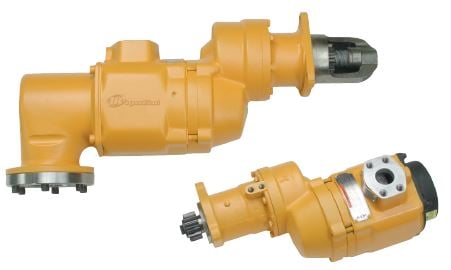

- ST 700/900 Series

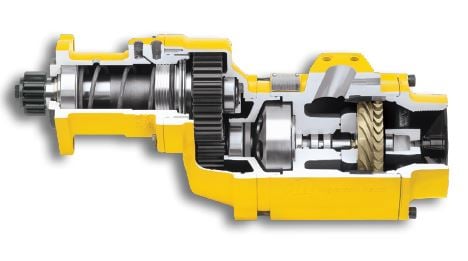

- ST 1000/ST 1000M Series

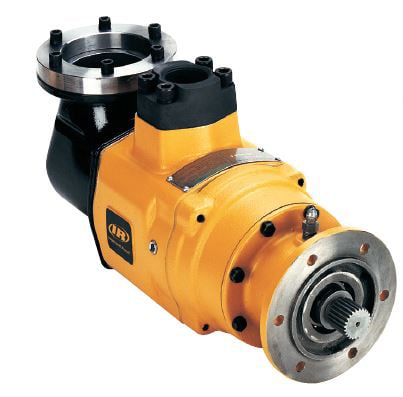

- TS700/TS900/TS1400 Series
Features/Benefits
- Efficient 47 HP turbine motor uses no external lubrication
- Same inlet and outlet locations as the 150BM Series starters for easy change-out
- Uses the proven front end of the 150BM starter
- Sealed, oil-lubricated planetary gears provide maintenance-free operation
Versatile
- Sealed for use in gas and air applications
- Inertia and pre-engaged models
- Left- and right-hand rotation
- 4 inlet, 4 exhaust, and 16 drive housing orientations
- 30-150 psi (2.1-10.3 bars) operation
Features/Benefits
- Efficient 26 HP turbine motor uses no external lubrication
- One-hose hookup simplifies required piping
- In-line design weighs only 23 lbs (10.4 kg)
- Sealed grease fill lubrication for gears and bearings provides maintenance-free operation
Versatile
- Removable mounting flange can be rotated 360 degrees for greater mounting flexibility
- Compact, lightweight design makes installation easy
- Overhung pinion design fits most worldwide manufacturers’ engines
- 60-150 psi (4.1-10.3 bars) operation
Features/Benefits
- Powerful 44 HP turbine motor uses no external lubrication
- Steel insert at inlet ensures a solid connection
- Smooth pre-engagement piston minimizes ring gear wear
- Sealed, oil-lubricated planetary gears provide maintenance-free operation
Versatile
- Sealed for use in gas and air applications
- For use with air or natural gas
- 4 inlet, 4 exhaust, and 16 drive housing orientations
- Left- or right-hand rotation
- Optional pinions and flanges to fit most engines
- 30-150 psi (2.1-10.3 bars) operation
Features/Benefits
- Powerful 67 HP turbine motor uses no external lubrication
- Extended pilot for easier installation
- Offset pre-engaged ports for greater fitting positioning
- Smooth pre-engagement for limited ring gear wear
- 39 lb (17.7 kg) weight makes it one of the lightest starters in its class
Versatile
- In-line design and light weight make installation easy
- Left- or right-hand rotation
- 8 orientation options
- 30-150 psi (2.1-10.3 bars) operation
- For use with air only
Features/Benefits
- Powerful 66 HP turbine motor uses no external lubrication
- Robust gearing handles extended crank cycles
- B and C gearing options provide a broad range of starting torques
- Sealed, oil-lubricated planetary gears provide maintenance free operation
Versatile
- Sealed for use in gas and air applications
- Inertia and pre-engaged drives
- Left- or right-hand rotation
- 4 inlet, 4 exhaust, and 16 drive housing orientations
- 30-150 psi (2.1-10.3 bars) operation
Features/Benefits
- Powerful 70 HP turbine motor uses no external lubrication and offers best-in-class efficiency
- Patented, solid aluminum motor design enables reliable operation in harsh, contaminated environments
- Robust gearing handles extended crank cycles
- Patented, fully-supported high-speed rotor extends bearing life by minimizing deflection and ensuring concentric running; a better alternative to cantilever designs
Versatile
- Sealed for use in gas and air applications
- Inertia and pre-engaged models
- Left- or right-hand rotation
- 4 inlet, 4 exhaust, and 16 drive housing orientations
- 30-150 psi (2.1-10.3 bars) operation
- Patented slip-fit motor design makes servicing simple and convenient
- ST1000M version with 2-inch NPT inlet reduces the need for piping changes on some competitive models
Features/Benefits
- Powerful turbine motors up to 146 HP require no external lubrication
- Sealed oil-bath system internally lubricates the planetary gears and motor bearings
- Air cooling extends bearing and seal life
- No internal or external shut-off devices
Versatile
- Multiple spline pinions
- Multiple gear ratios for matching the optimum engine characteristics
- Multiple flange options
- Gas-sealed for application flexibility
