- Thermoplastic Valves
Hayward valves are designed using the latest state-of-the-art equipment. Our CAD system, linked to finite element software, provides accurate and essential stress analysis. Hayward valves are designed to be strong - with material where it counts. Pressure and prolonged operation will not fatigue Hayward valves. Thus, Hayward provides years of maintenance-free service.

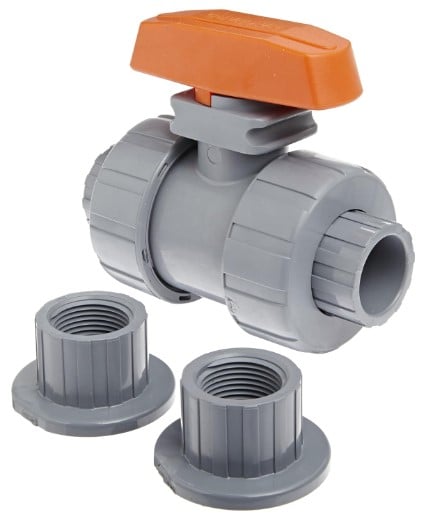

TB Series True Union Ball ValvesProduct Description
TB Series true union ball valves are offered in PVC, CPVC and Platinum GFPP. O-rings are FPM or EPDM and seats are PTFE. Up to 2 in. sizes have socket and threaded end connections. A trigger style lockout handle is an option. All valves are assembled with silicone free lubricant.
Features :- NSF/ANSI 61 Listed
- PVC, CPVC and GFPP
- Full Port Design
- Reversible PTFE Seats
- Double O-Ring Stem Seals
- Easy to Service
- Easily Automated
Options :- Lockouts Available
- 2 in. Square Operating Nut
- Stem Extensions
- Pneumatic and Electric Actuators
- Spring Return Handle
Applications :- Water & Wastewater Treatment
- Chemical Processing
- Food & Beverage
- Swimming Pools & Water Parks
- Aquaculture
- Aquarium & Zoo Service
- Pharmaceutical
- Pulp & Paper
- Landfill Service
- Marine & Corrosive Environments
- Metal Finishing & Plating
Brand Hayward Product Type Valve Inlet Size 2 in Outlet Size 2 in Material - Seats PTFE Max Pressure 150 psi (10.3 bar) Materials of Construction PVC End Connection Socket/Threaded
